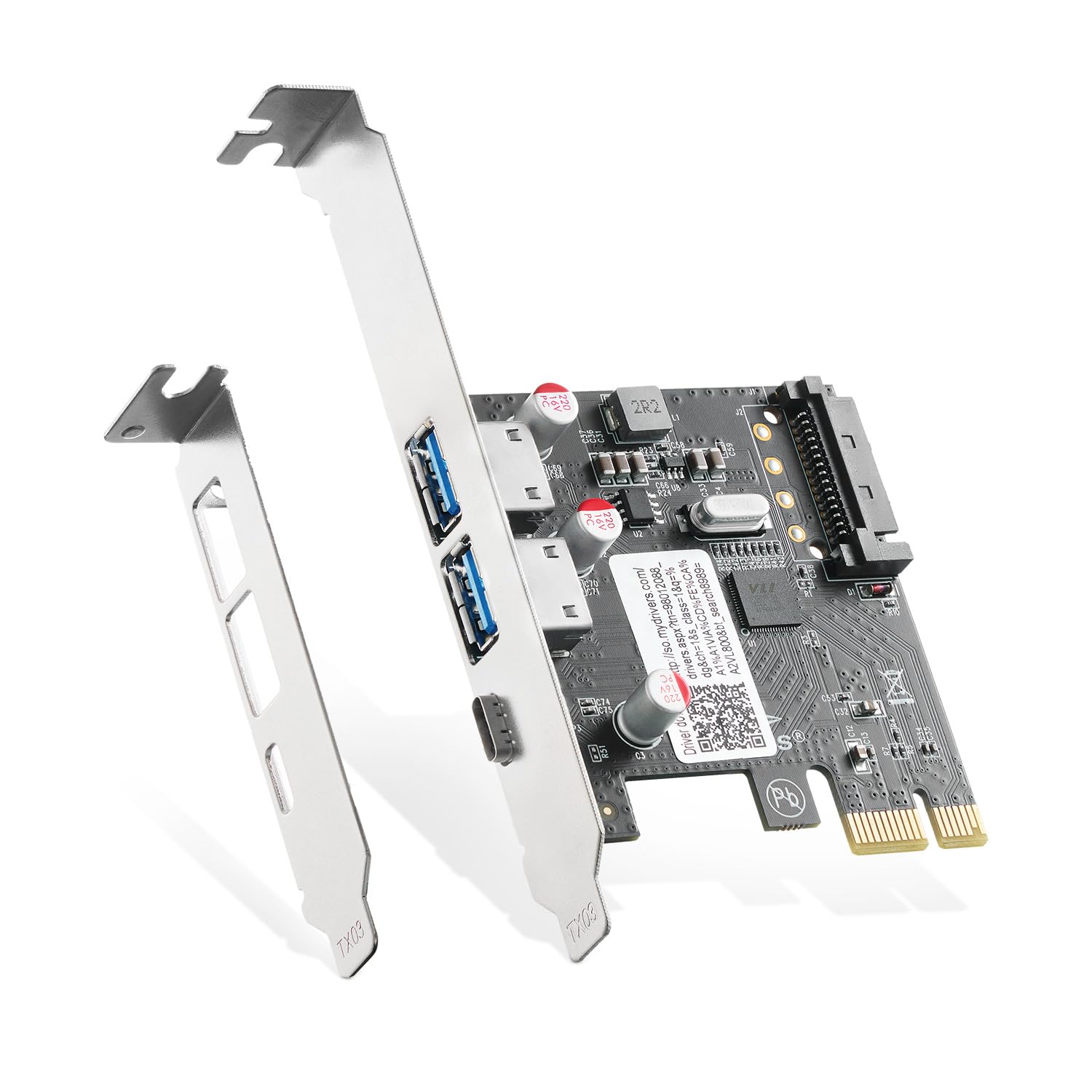

Binardat PCIE USB 3.0 Card with Type-A & Type-C Ports for PC Upgrade

$9.33

$16.98

Safe 45%

Binardat PCIE USB 3.0 Card with Type-A & Type-C Ports for PC Upgrade

Binardat PCIE USB 3.0 Card with Type-A & Type-C Ports for PC Upgrade

$9.33

$16.98

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

14 people viewing this product right now!

SKU: 80302564

Guranteed safe checkout

Description

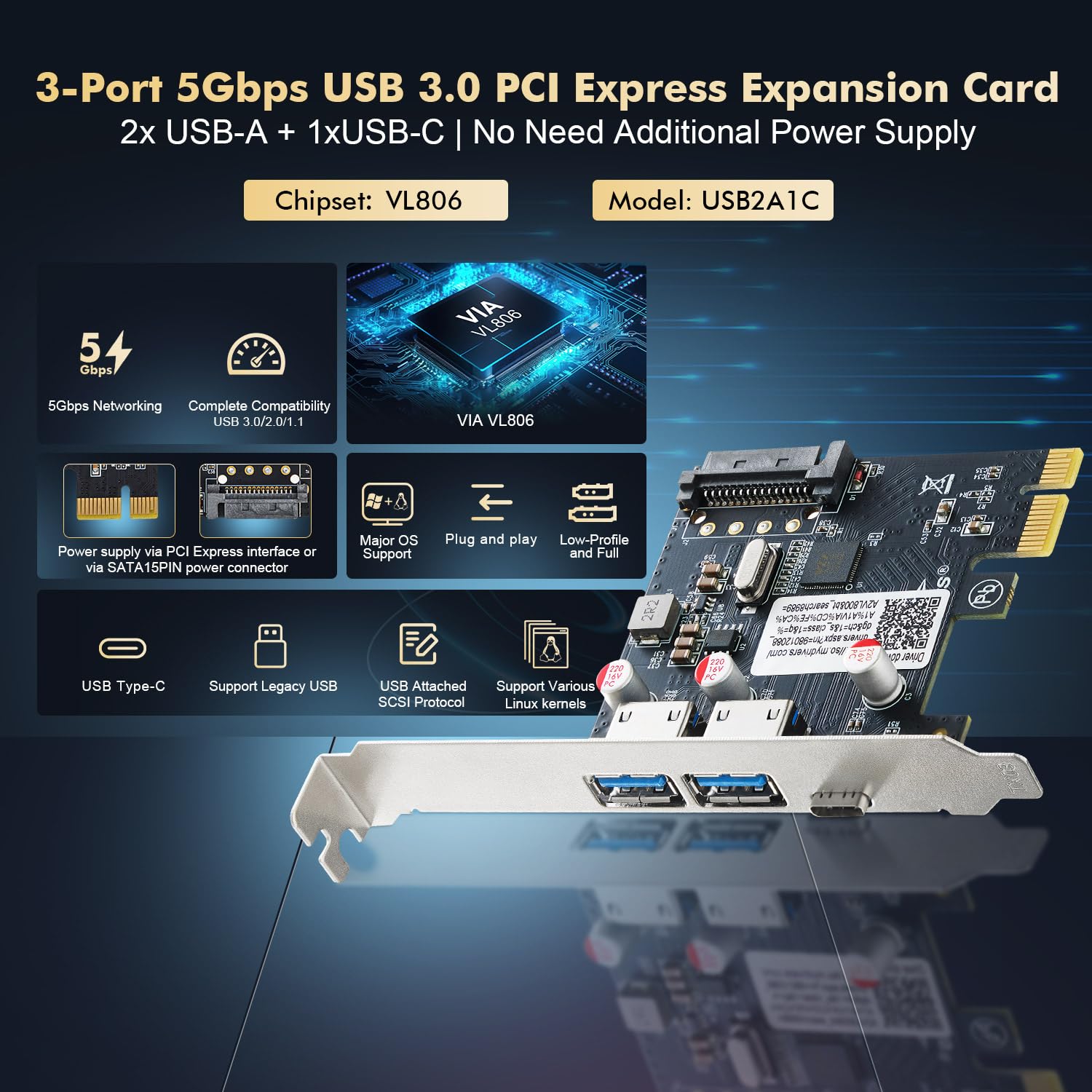

PCI Express VL806 USB adapter is complies with Super-Speed (5 Gbps), High-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) devices. It enabling the simultaneous operation of 2xUSB-A + 1xUSB-C peripheral devices. It is fully backward compatible with USB 2.0 and 1.1 specifications, ensuring seamless connectivity of legacy USB devices.It has a PCI Express 2.0 x1 interface that is backwards compatible with PCI Express 1.0 and is perfectly suited for both PC Host and Add-In Card applications. Key Features: Compliant to Universal Serial Bus 3.0 Specification Revision 1.0 Compliant to Universal Serial Bus 2.0 Specification Compliant to eXtensible Host Controller Interface (xHCI) Specification Revision 1.0 Support Legacy USB Function Compliant with PCI Express Base Specification 2.0 In-house USB PHY employs advanced CMOS process to reduce power consumption Support Battery Charging Specification Firmware upgrade options include integrated firmware in system BIOS Software: Initial Driver Support for Windows 8,7, Vista, and XP, USB Attached SCSI Protocol (UASP), Support various Linux kernels Product Specification: Chipset: VIA/VL806 Port number: 1x USB-C + 2x USB-A Interface: PCI Express 1x slot Dimension: 70*68*14mm Support OS: Windows 10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server 2012, 2008 R2, 2003(32/64) Mac OS 10.x (Intel based, tested up to 10.9) Linux 2.4.x and later (Tested up to 3.5) Environment: Operating Temperature: 0 ℃-50 ℃ Relative Humidity: 10%-90%(non-condensing) Storage Temperature: -0℃-80℃ Relative Humidity: 5%-90%(non-condensing) Features: SuperSpeed USB 10 Gbps, SuperSpeed USB 5 Gbps, Hi-Speed 480 Mbps, Full-Speed 12 Mbps, Low-Speed 1.5 Mbps Downwards compatible to USB 3.0, USB 2.0, USB 1.1 Power supply via PCI Express interface or via 4 pin power connector Electrical power: USB Type C: max. 15 watt (+5 V / 3 A) USB Type A: max. 4.5 watt (+5 V / 900 mA) Supports eXtensible Host Controller Interface (xHCI) specifications 1.1 External power supply

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

【3 Ports】This USB card has 2 USB Type-A and 1 USB Type-C Ports, supports USB 3.0 data transfer up to 5Gbps, backward compatible with USB2.0 & USB1.1. Connects to a wide range of USB devices such as USB keyboards, USB mice, USB speakers, USB KVM switches, USB HUBs, and many more USB-A and USB-C interface devices.

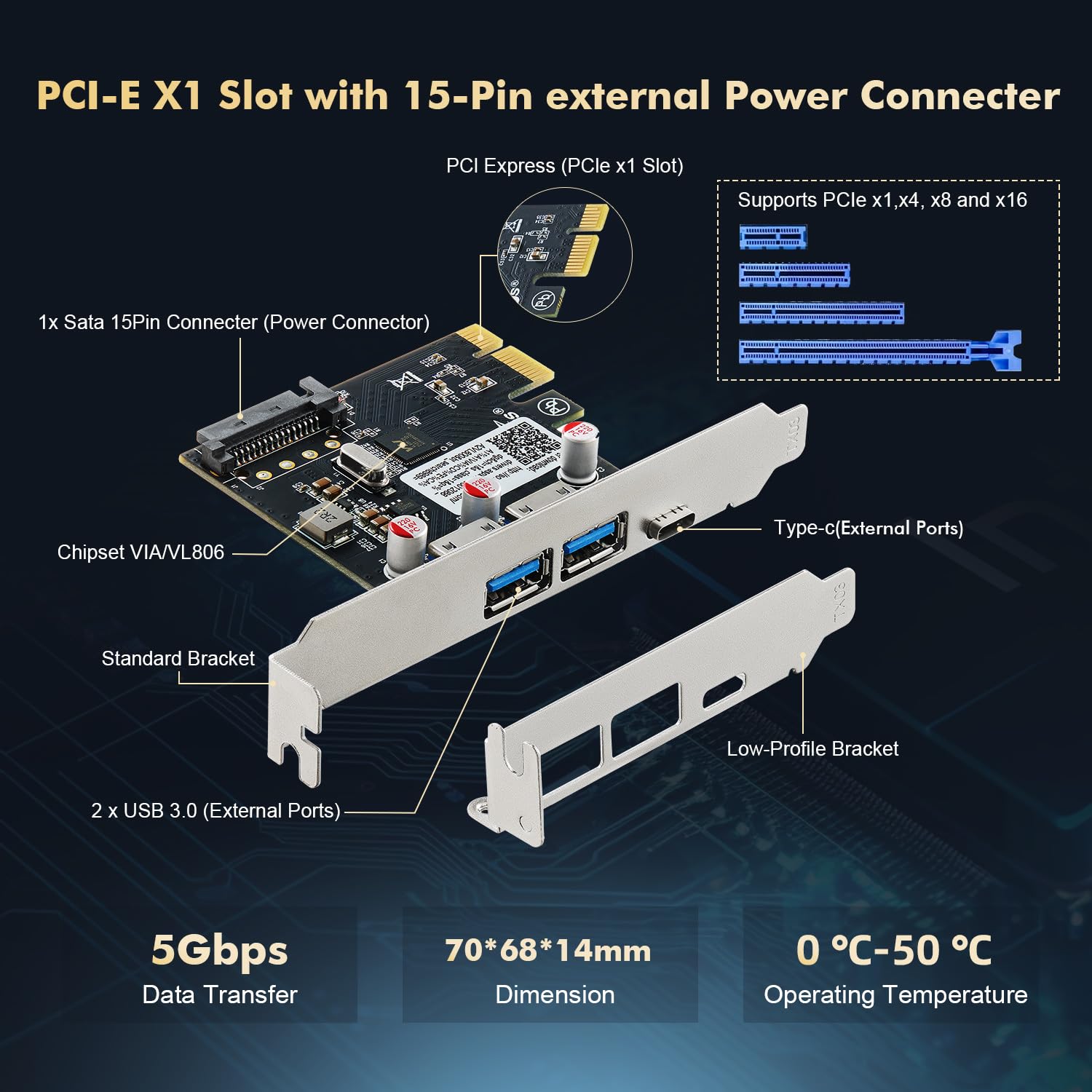

【PCIE X1】Compatible for PCIe slot X1,X4,X8,X16, default with standard bracket, also include low profilce bracket, support multiple installation such as PC, server, workstation, NAS, etc.

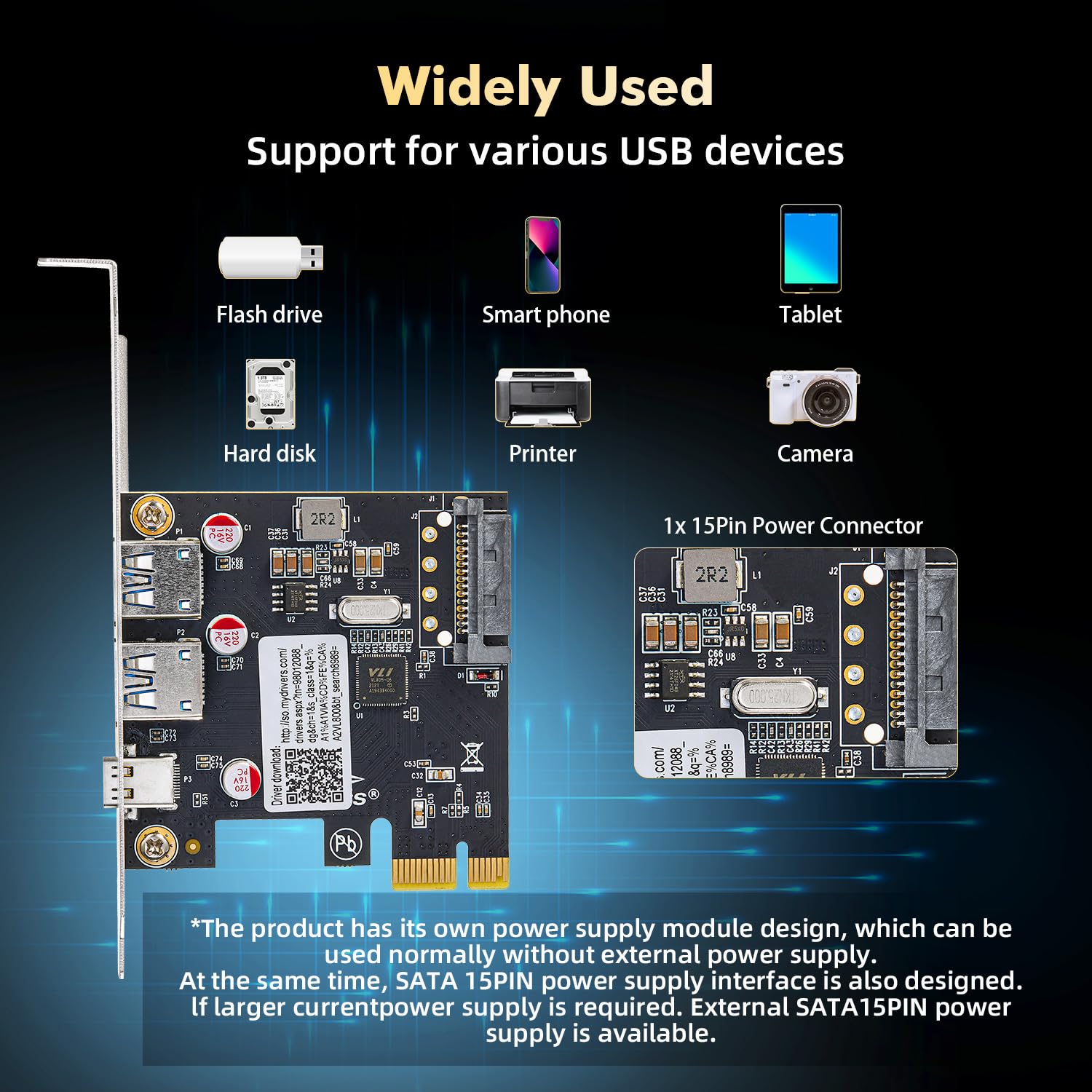

【Dual-mode Power Supply】Plug and play on most new motherboards without the need to install any power cables. Aslo support SATA 15pin power connector, if the motherboard model is older and cannot provide enough power, it can be powered from the PSU.

【Easy Used】Support Windows 10/11 OS system, drive-free installation, plug and play. Includes a CD driver disk if your system requires driver installation.

【Complete Package】Includes all you need for a perfect solution 1 x PCI-E to 4 USB-ports, 1 x Low-Profile Bracket. 1 x CD Driver. Provide full life-cycle support.
