VIA Mini PCIe to Dual USB 3.0 Card (5Gbps) for Mini PCs & Laptops

$20.43

$37.16

Safe 45%

VIA Mini PCIe to Dual USB 3.0 Card (5Gbps) for Mini PCs & Laptops

VIA Mini PCIe to Dual USB 3.0 Card (5Gbps) for Mini PCs & Laptops

$20.43

$37.16

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

25 people viewing this product right now!

SKU: 77476857

Guranteed safe checkout

Description

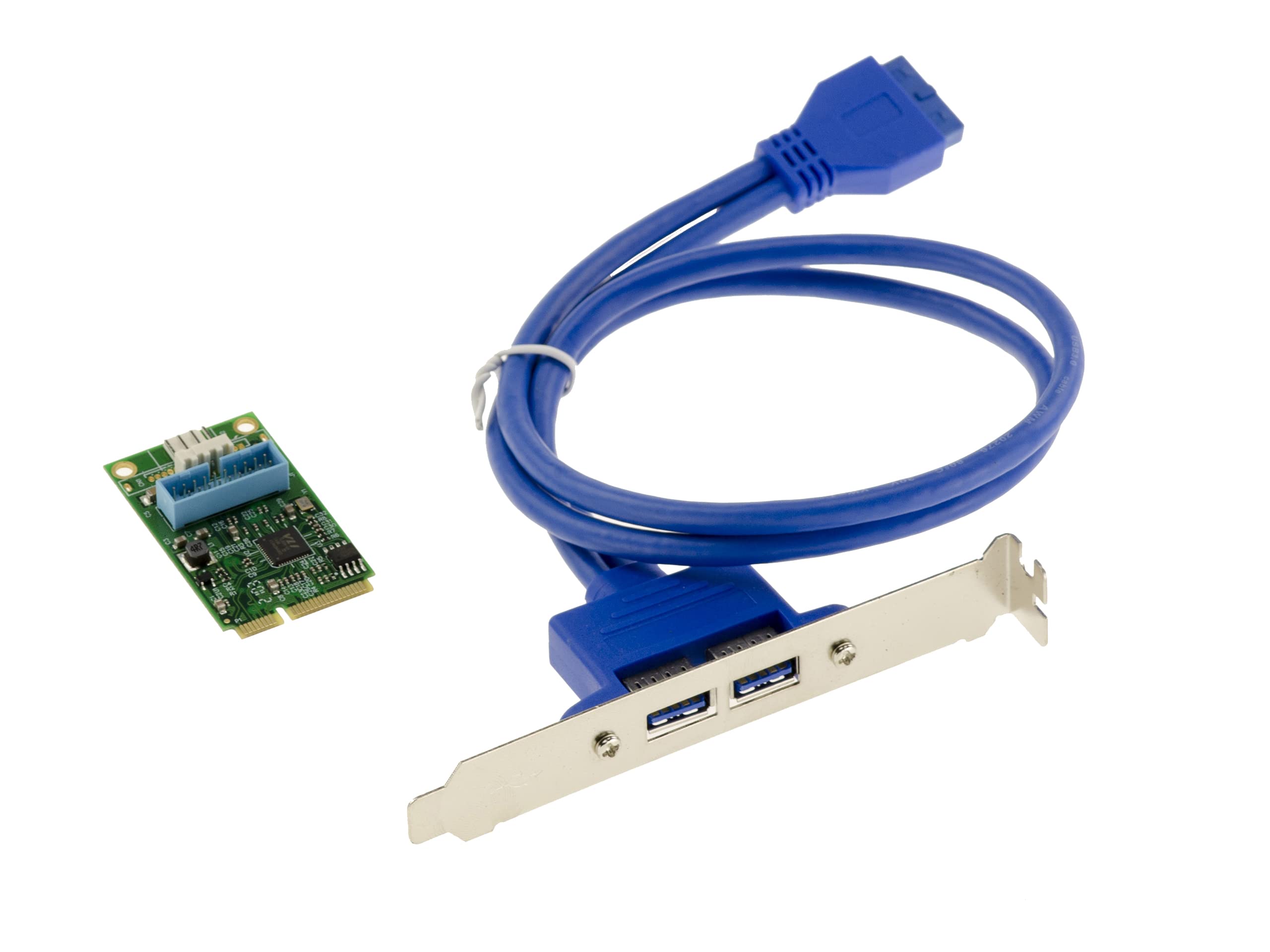

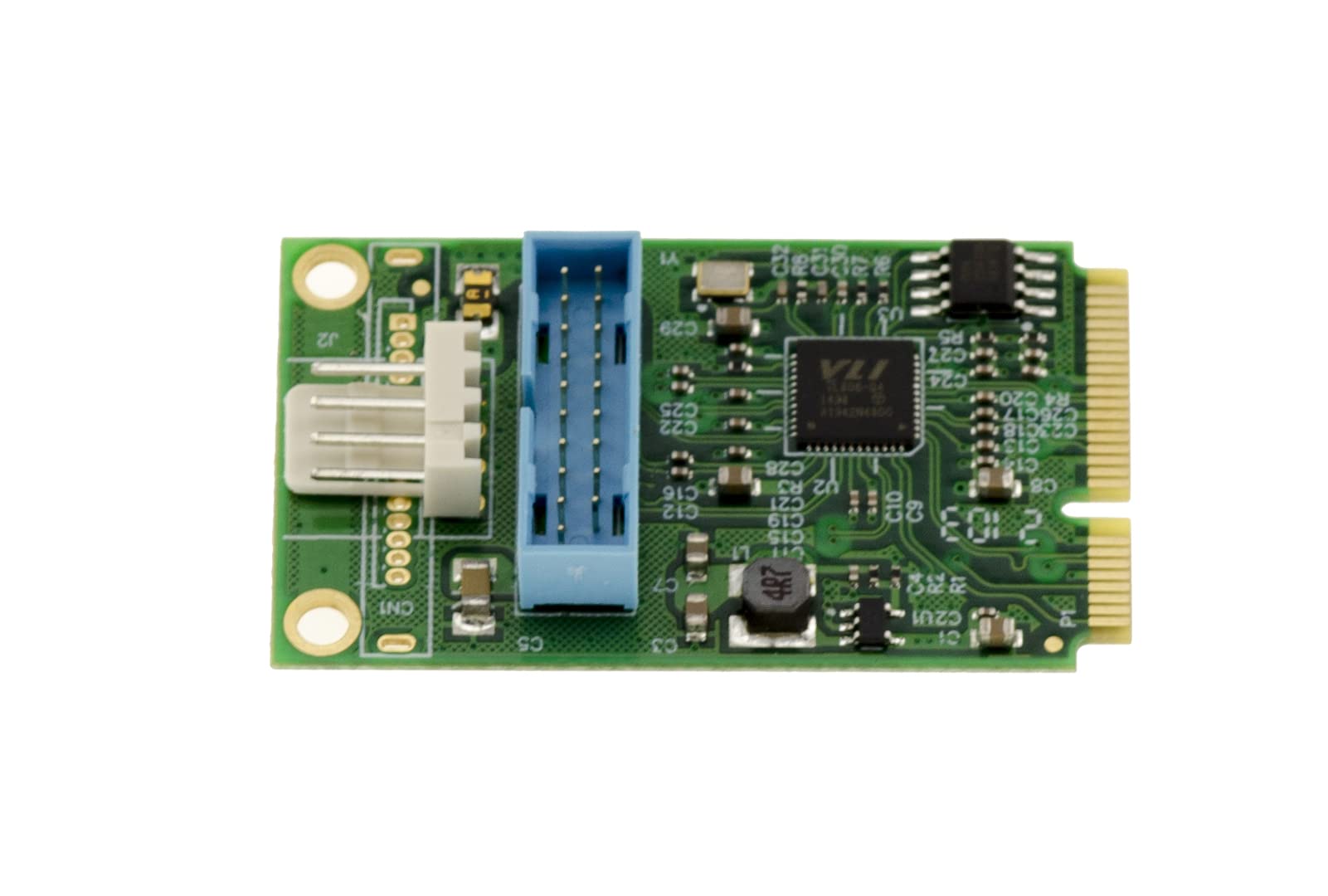

Use: Mounts to the mini PCI Express port of laptops (52 pin) Compatibility: Drivers for Windows 11, 10, 8, Windows 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or higher. Specifications: PCIe 2.0 (retro compatible 1.0a). Single lane PCIe, bandwidth 5.0/2.5Gbps. Compatible with MiniPCIe "full" or "Mini". Compatible with the specifications "PCI-E Mini Card Electromechanical specification revision 1.2". Via VL806 Chipset. Superspeed USB 3.0, 5 GBps full duplex. Supports USB 2.0 High Speed (480Mbps) and USB 1.0 Full Speed (12 Mbps). Compatible with energy-saving devices (PCI-Bus Power Management Interface specification revision 1.2). The card has a 19-point connector supporting two USB3.0 ports, we provide a 19-point cord to "classic" USB A female plugs. Compatible with XHCI 1.0 (Intel Extensible Host Controller Interface). USB 3.0 port maximum power supply: 900mA at 5V. A molex plug on the board will allow you if you want to connect an external power supply (optional) for more power supply. The MiniPCIe card is sold with a USB3 bracket that connects to the 19-point port and allows you to have two "classic" USB 3 A female plugs to connect any USB3 device simply.

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Mounts to the mini PCI Express port of laptops (52 pins); Drivers for Windows 10, 8, Windows 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or higher

PCIe 2.0 (backward compatible 1.0a) Single lane PCIe, bandwidth 5.0/2.5Gbps Compatible MiniPCIe "full" or "Mini" Compatible with specifications "PCI-E Mini Card Electromechanical specification revision 1.2" CHIPSET VIA VL806

USB 3.0 SuperSpeed, 5 GBps full duplex Compatible with USB 2.0 High Speed (480Mbps) and USB 1.0 Full Speed (12 MBps) Compatible with energy-saving devices (PCI-Bus Power Management Interface specification revision 1.2)

The card has a 19-point connector supporting two USB3.0 ports, we provide a 19-point angle cord to "classic" USB A female plugs compatible with XHCI 1.0 (Intel Extensible Host Controller Interface)

Maximum power supply of USB3.0 ports 900mA in 5V A molex plug on the board will allow you to connect an external power supply (optional) for more power supply.

Reviews

*****

Verified Buyer

Works fine .. but I wish they didnt describe the power connection as optional - it is required by the USB device at the other end of the cable to recognise the connection. Wasted a bit of time on that.
